OEM Precision Bracket Manufacturing for Y.Stern Engineering Stamped Galvanized Steel Part Tiroflx China Project
Project Background
Tiroflx was given a technical challenge by Y.Stern Engineering, an electromechanical assembly service provider, To design and manufacture a precision metal bracket to mount solenoids per a detailed engineering drawing. Requirements were Tight dimensional tolerances, Precise angle control, Scalable volume capacity, and Economical production.
Our OEM Manufacturing Approach
We forwarded the client’s sketch and technical specifications to shortlisted stamping factories with experience in precision metal stamping.
According to the evaluation of sample capability, price quotes, and lead time, we selected a qualified factory with good tooling capacity and established quality records.
We developed a specialty mold from the client’s CAD file.
We manufactured the part through CNC-controlled stamping, and more than 700,000 units have been produced to date, each manually deburred and visually inspected.
Production Quality Measures
- All edges deburred
- No oil residues on parts

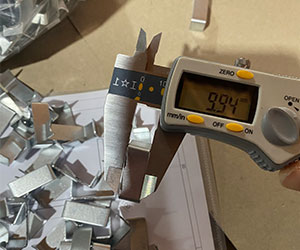

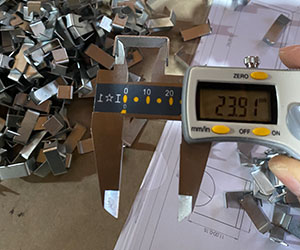

- Angle consistency is maintained across all units
- Visual inspection conducted on each
Production Batch Technical Specifications

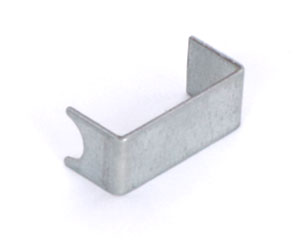

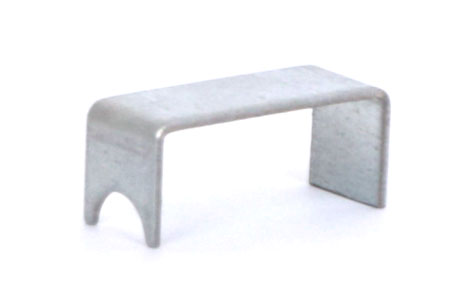

Product Name: Bridge for Solenoid A
Material: Galvanized Steel Sheet
Manufacturing Method: Cold Stamping
Drawing Revision: 00
Dimensions: As per customer drawing
Finish: Industrial quality, deburred, oil-free
Packing: Bulk, shipment protected
QC: 100% batch visual inspection
Key Results
Design and development of a custom mold involved Stable quality through high-volume production Appropriate for integration into automatic assembly lines without further finishing Clean finish with precise dimensions Over 700,000 parts delivered with zero defect reports
Project Outcomes
Seamless integration and continuity of assembly operations with the bracket were accomplished by Y.Stern Engineering, resulting in: Reduced assembly time Greater consistency in product lines
Client Testimonial
“Tiroflx managed the entire project professionally, from tooling to production to delivery. The part has performed flawlessly in our assembly line, and we’re continuing to scale confidently.”
Why Tiroflx？
- Over 25 years of hands-on manufacturing experience
- Cross-border sourcing and production management
- Full OEM and ODM support, including mold development
- Western-managed team with multilingual capabilities
- Consistent quality control throughout all stages
