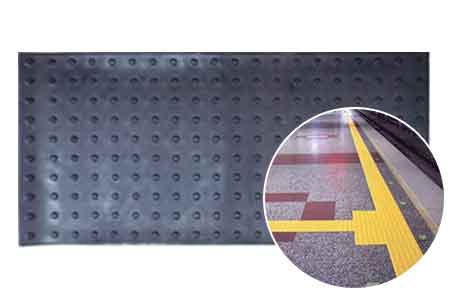

MAHALEV approached us with a mission-critical project: developing a durable, tactile mat for blind people that would meet accessibility standards and be appropriate for installation in public buildings.
Project Overview
Product Guidelines
• Uniform tactile bump height
• Non-slip rubber material
• Durable in high-heat environments
• Secure installation in tiled or concrete environments
It was not a catalog piece. It was a complete OEM project from scratch. Engineering on the Ground to get it right, one of our senior engineers flew two hours to the area of manufacture, then drove another hour to visit a specialty rubber factory. He spent the day in the field, ensuring quality for our clients, acting as their dedicated sourcing agent.
He spent the day in the field with the production team, going over every detail of the local regulation, not just the specs, but the intent: safe and secure navigation for blind individuals in real-world conditions.
- Some of the most significant challenges were:
- Designing a custom mold for regulated bump height (5mm), spacing, and diameter
- Sourcing a special adhesive that will withstand extreme temperatures without separating
- Achieving stable ground fixation without using metal anchors
- Flexibility vs. weight balance to cope with high pedestrian traffic
Our OEM Solution
Complies with local and international tactile paving standards
- High-grip, UV-stable, long-life rubber compound
- Heat-Resistant Adhesive System: Special hot climate formulation
- Bi-Directional Ground Stability: No warping, curling, or movement over time

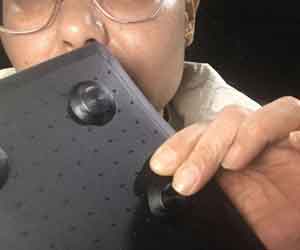

- End-to-End QC Oversight: Each mat batch is checked for compliance
Product Specifications
- Material: Vulcanized high-density rubber

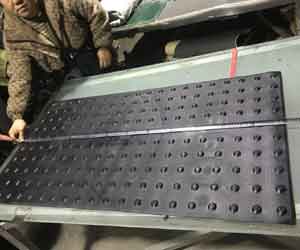

- Mat Size: 1000 mm × 500 mm

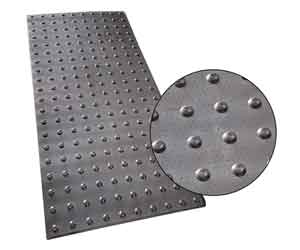

- Tactile Bump Height: 5 mm
- Bump Diameter: 25 mm
- Mat Thickness: 7 mm

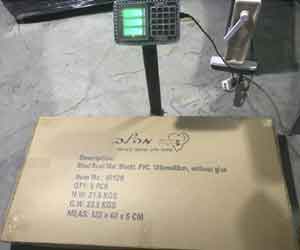

- Weight: Approx. 8.5 kg
Product Features

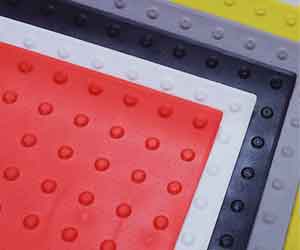

- Color Options: Black (standard), Yellow (optional)
- Adhesion: Compatible with concrete and tile, includes a weather-resistant adhesive
- Climate Resistance: -20°C to +60°C
- Application: Entrances to hospitals, government buildings, train stations, and public infrastructure
Results & Feedback
We have delivered multiple production runs of this mat, meeting strict specs with zero product issues.
The client noted exceptional durability, neat installation, and positive reports from field inspectors.
“This was more than a product. Tiroflx helped translate regulation into a working solution with precision, patience, and professionalism.” — MAHALEV Procurement Team

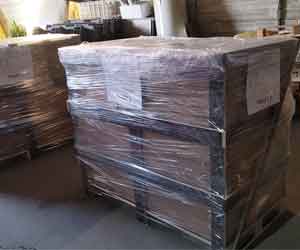

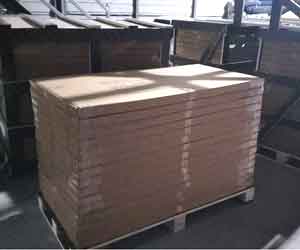

Logistics & Consolidation
Our comprehensive service included end-to-end quality oversight, regulatory compliance, and fully managed logistics and consolidation of all finished goods.
Why Top Institutions Choose Tiroflx?
- Custom-engineered rubber flooring for public use
- Meets EU accessibility codes
- On-site engineering support
- Materials tested for long-term field conditions
- Trusted by public agencies and infrastructure partners
